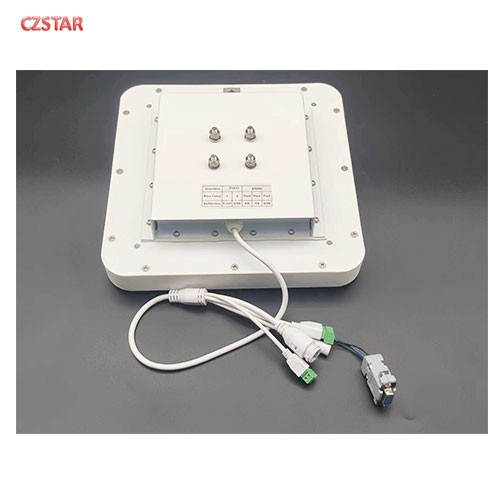

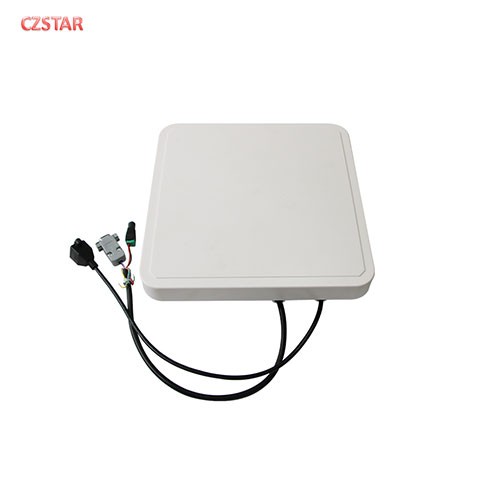

impinj r2000 integrated uhf antenna reader 15m Long Distance range UHF Access Control Card Reader with usb RS232 RS485 Wiegand interface

impinj r2000 integrated uhf antenna reader 15m Long Distance range UHF Access Control Card Reader with usb RS232 RS485 Wiegand interface

Model number:CZS260

EMAIL


The high performance IMPINJ R2000 UHF RFID integrated antenna reader CZS260 are designed upon fully self-intellectual property. Based on proprietory efficient DSP algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, vehicle/people access control, production line.anti-counterfeit and industrial production process control system.

FEATURES

*Read multi-tag 1-500tags;

* Excellent chip impinj r2000

*Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

* 865-868mhz EU,902~928MHz frequency USA frequency

*RF output power up to 33dbm(adjustable);

*Integrated 9dbi antenna reader

*Long range reading: 9dbi antenna uhf rifd reader 1-8m,12dbi antenna uhf rfidreader 1-15m(Effective

distance depends on antenna, tag and environment.)

*Support auto-running, interactive and trigger-activating work mode;

* Low power dissipation with single +9 DC power supply;

*Support USB, RS232, RS485, Wiegand interface,TCP/TCP and RJ45(optional);


Model Number and Size

CZS260,  size 260*260*65mm

Frequency

902Mhz – 928Mhz     or   865MHz – 868MHz

Reading   Distance

1-15m read range (depend on tags,environment,application)

Chipimpinj r2000 / impinj E710

Connector

 usb, RS232 /Wiegand 26 /Wiegand 34,RS485,TCP/IP RJ45(optional)

Baud rate

115200 bps(default and recommended)     38400bps

Supply   Voltage

DC 9V

Air   Interface Protocol

EPC global UHF Class 1 Gen 2 / ISO 18000-6C

Output Power

0-33dBm(adjustable)

Read multi-tag

1- 500 Tag/Second

Tag   cache

200 Tags@ 96 bit EPC

Standby   Mode Current

<80mA (EN pin set to high)

Sleep Mode Current

<100uA (EN pin set to low)

Startup Time

<80mS

Operating   Temperature

- 20 °C           -    + 70    °C

Storage   Temperature

- 20 °C           -    + 85     °C

Humidity

< 95% ( + 25 °C)

Output Power Precision

+/- 1dB

Output   Power Flatness

+/- 0.2dB

Receiver   Sensitivity

< -70dBm

Tag RSSI

Supported

Heat Dissipation

No heat sink required



700-500 产品应用图.jpg


Shenzhen Czstar Technology Co., Ltd is a leading RFID manufacturer, located in Shenzhen city , China.

We are specialized in R&D, manufacturing and sales of RFID products. Provide high-performance RFID product & RFID solutions with an experienced R&D and management team in RFID industry.

Our main RFID products include 860~960MHz ,125KHz, 134.2KHz, 13.56MHz and 2.4G frequency, which conforms to ISO18000-6B/6C, ISO7816, ISO11784/5, ISO14443, ISO15693 and other international standard protocols.

The products has been successfully applied to the government, enterprises, schools, military fields etc. Widely used in sport race events,warehouse,logistics,manufacturing, asset tracking, logistics and supply chain, motor vehicles, clothing, books, archives management, education, ports, steel, tobacco ,transportation industry, alcohol anti-counterfeiting, animal husbandry and meat source, and other fields .

700-500 公司图片.jpg




Q1: Are you a factory or trade company?

A: We are a leading RFID manufacturer factory.

Q2: Can i get some sample or free sample ?

A: Yes, welcome to order sample to test and check quality. And we can provide free Rfid tag test sample.

Q3: Do you have MOQ?

A: In general RFID tag have not MOQ, free rfid tag sample can be provide.

 RFID reader antenna MOQ is 1pcs.

Q4: Is it possible to put our logo on your product or product packaging for OEM/ODM?

A: Customized design is available,welcome to customized products.

Q5: What payment methods does your company accept?

A: We can accept payment by Credit card, TT (bank transfer) , Western Union, Paypal,Payoneer,Trade asurance,, Escrow, Alipay.

Q6: What is your lead time?

A: Our regular product lead time is 1~7 working days,also depends on order quantity and specific requirement.

Q7: How long is your warranty period?

A: Our officially promised warranty time is 12 months.If your rfid reader have quality problem within one year ,please feel free to contact us ,we will provide best solution for you

Q8: Is there any tracking number for my order?

A: Yes ,we ship every order with their tracking number ,and you can view the shipping status on the corresponding website.

Q9: Can you provide after- sales technical support?

A: Yes,we have strong technical team can provide after -sales technical support service.

Q10: What methods will you use for shipment?

A: Fast Express: DHL,FedEx,TNT,UPS,EMS -Slow shipping way: Aliexpress standard shipping , China post mail, Epacket...... -Also can ship goods by sea or by air,real method depends on order quantity.
