impinj r2000 multi-ports uhf rfid reader module uhf rfid reader 1port 4port 8ports 16ports long range rfid reader EPC gen2 uhf read multi tags reader cztsar

impinj r2000 multi-ports uhf rfid reader module uhf rfid reader 1port 4port 8ports 16ports long range rfid reader EPC gen2 uhf read multi tags reader cztsar

Feature:
1.excellent quality same performance as impinj r420 reader
2.Multi-port 1port 4port 8ports 16ports
3.Excellent chip: impinj chip

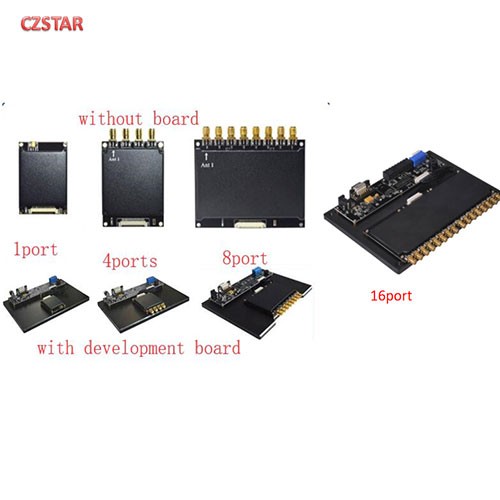

Many model can be optional:
1port without board: CZS1880 , 1port with board : CZS1881
4ports without board: CZS1883 , 4ports with board: CZS1884
8ports without board: CZS1887 , 8ports with board: CZS1888
16port without board: CZS18815  , 16port with board : CZS18816

EMAIL

impinj r2000 multi-ports uhf rfid reader module uhf rfid reader 1port 4port 8ports 16ports long range rfid reader EPC gen2 uhf read multi tags reader cztsar


Feature


Feature

Descriptions

1

Impinj R2000 Built-in

Impinj Indy R2000 chip as RF transceiver.

2

Anti-collision Algorithm

Unique I - Search multi-tag identification algorithm providing the

highest efficiency.

3

Optimized Algorithm for Tags with

Small Volume

Optimized applications for small volume with better tags respond

time.

4

Dual CPU Architecture

*Main CPU: tag inventory; Assistant CPU: data management.

*Tag inventory and data transfer are parallel and simultaneous.



5



Fast 4 or 8-Antenna Switch Inventory

*Every antenna’s inventory duration is configurable( Minimum Duration: 30 ms).

*Polling from ANT 1 to ANT 8.



6



Two Modes for Inventory

*Buffer mode and Real-time mode.

*Tags will be stored as buffer under buffer mode.

*Tags will send data under real-time mode. This mode allows user to get tag data instantly.



7



Hardware System Halt Detection

Hardware CPU status surveillance.

Run for 24hours X 365 days without system halt.



8



PA Health Surveillance

PA status surveillance.

Make sure PA never works under saturated state. Protected it for long term operation.



9



18000-6B/6C Full Compatible



It can be switched rapidly between 18000-6B and 18000-6C tag.



10



18000-6B Large Data Read/Write

*Read 216 bytes in one time taking less than 500ms.

*Write 216 bytes in one time taking less than 3.5 seconds.

*It can read/write data with different lengths.



11



Antenna Connection Detection

*Detect antenna connection.

*Protective for RF receiver.

*It can be canceled with command.



12



Temperature Sensor

Multi-point surveillance for accurate operating system temperature.



13



Power Output Correction

*Dual modules making sure output power can be fine adjusted.

*Dual modules working and keeping correction unless they are both damaged.



14



Excellent Cooling Design

*Heat dissipation and large cooling surface design.

*Thermal coupling interfaces using high-thermal conductivity solid materials which ensure stable performance under high temperature.


Model number & Size

1port without board: CZS1880 , 1port with board : CZS1881

4ports without board: CZS1883 , 4ports with board: CZS1884

8ports without board: CZS1887 , 8ports with board: CZS1888

16port without board: CZS18815  , 16port with board : CZS18816

Name



1ports 4ports 8ports 16ports  Impinj R2000 UHF RFID reader module


Chip

Indy Impinj r2000 chip

Read range

1-35m(depend on tag and   antenna/application)

Frequency

860Mhz – 960Mhz or   865-868mhz/902-928mhz

Protocol

EPCglobal UHF Class 1 Gen   2 / ISO 18000-6C/ISO 18000-6B

Read tag

Multi-tag   reading,1-500tags/second(depend on antenna/tag and application)

Interface(connector)

TCP/IP(RJ45)/Ethernet/RS-232(Serialport)/RS-485   (Optional)

Antenna Connector

RP-TNC or TNC (option)

Power supply

+12V DC @ 2A

Max Uart Baud Rate

115200 bps

Output Power

18dBm  –   30dBm

Standby Mode Current

<50mA(EN pin set high)

Sleep Mode Current

<100uA (EN pin set low)

Operating Current

1.2A   +/-10%

Operating temperature

- 20 °C   -    + 55   °C

Storage temperature

- 20 °C   -    + 85   °C

Humidity

< 95% ( + 25 °C)

Output Power precision

+/- 1dB

Output Power Flatness

+/- 0.2dB

Receive Sensitivity

< -85 dBm

Peak Inventory Speed

1-500 tags/sec

Tag Buffer Size

1000 tags @ 96bit EPC

Tag RSSI

Supported

Antenna Detector

Supported

Ambient Temp Monitor

Supported

Working Mode

Single/DRM

Host Communication

TTL Uart

GPIO

2 inputs; 2 outputs

Heat Dissipation

Air cooling
