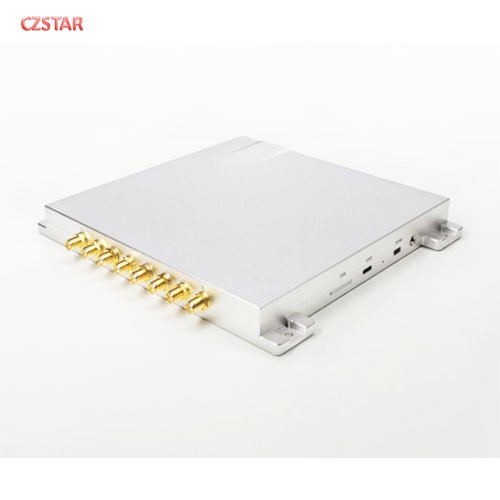

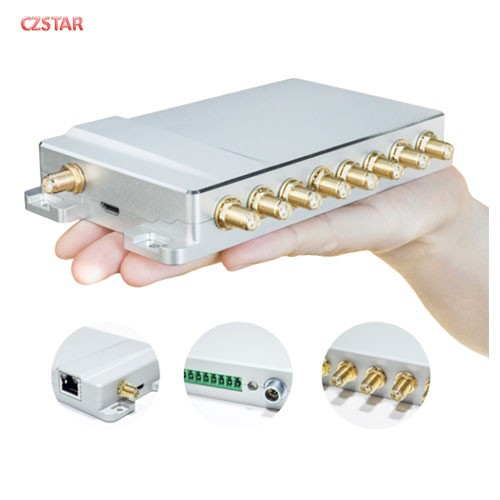

8 ports USB OTG Linux Android Bluetooth OS rfid reader Multi-functional impinj r2000 multi reading long range rfid uhf reader

8-port USB OTG Linux Android Bluetooth OS rfid reader Multi-functional impinj r2000 multi reading long range rfid uhf reader

Operation systems Linux 4.9.11/Android7.0，support POE function,WIFI and Bluetooth ,USB OTG

Model Number : czs1802 , 1G RAM +8G ROM

Model Number : czs1802 Pro:
2G RAM +16G ROM / 4G RAM+32G ROM

Feature

Feature	Description
Impinj R2000 Built-in	Based on impinj R2000 module, which is stable and mature.
Based on Freescale Platform	IMX6S(Solo) / IMX6DL(Dual) / IMX6Q(Quad) 800MHz vehicle grade CPU.
Compact Size	133(L) * 84(W) * 22mm(H) Surprisingly compact CNC aluminum body, very convenient to deploy.
Online Upgrade	The OS kernel and APP can be updated online remotely.
POE Power	25W max, IEEE 802.3 supported.
Wide Voltage	Wide voltage input range from DC9V to DC24V.
Powerful OS Based	Linux 4.9.11 / Android 7.0 (for Quad core CPU and 2G RAM only)
RAM + ROM	czs1802 : 1G RAM +8G ROM czs1802 Pro: 2G RAM +16G ROM / 4G RAM+32G ROM(Optional)
HDMI Output Supported	HDMI D Type interface,peak transmission speed 5GB/s. 1080P, 720P supported.
Micro USB OTG Interface	USB 2.0 OTG,Micro USB interface. Compatible with USB 2.0 Peripherals.
Dual-Band WIFI Supported	SMA interface for external 2.4G/ 5G antenna.
Bluetooth	support Bluetooth 4.0
High-speed Internet Interface	450M/ 100M/ 10M adaptive Ethernet.
GPIO	4 inputs, 4 outputs. Up to 8kV isolation voltage.
Classy Industrial Design	Compact and artistic design with CNC aluminum material.

Parameters

Dimensions	133(L) * 84(W) * 22mm(H)
Weight	0.9kg
Material	CNC Aluminum
Input Voltage	DC 9V ~ 24V
POE Power	Supported
Operating Current	1.5A +/-5% @ DC 12V Input
Operating Temperature	- 20 °C~+ 85 °C
Storage Temperature	- 40 °C~+ 85 °C
Operating Humidity	< 95% ( + 25 °C)
Air Interface Protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Spectrum Range	902Mhz – 928Mhz, 865MHz – 868MHz
Supported Regions	US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 Mainland China Japan Korea Malaysia Taiwan
Output Power	0-31dBm
Output Power Precision	+/- 1dB
Output Power Flatness	+/- 0.2dB
Receive Sensitivity	< -85dBm
Peak Inventory Speed	> 700 tags/ s
Tag RSSI	Supported
Antenna Detector	Supported
Ambient Temp Monitor	Supported
GPIO	4 inputs, 4 outputs
Bluetooth	support Bluetooth 4.0
OTG	USB 2.0 OTG
HDMI	HDMI D Type interface
Online Upgrade	Supported
Heat Dissipation	Air cooling

700-500 产品应用图.jpg

Shenzhen Czstar Technology Co., Ltd is a leading RFID manufacturer, located in Shenzhen city , China.

We are specialized in R&D, manufacturing and sales of RFID products. Provide high-performance RFID product & RFID solutions with an experienced R&D and management team in RFID industry.

Our main RFID products include 860~960MHz ,125KHz, 134.2KHz, 13.56MHz and 2.4G frequency, which conforms to ISO18000-6B/6C, ISO7816, ISO11784/5, ISO14443, ISO15693 and other international standard protocols.

The products has been successfully applied to the government, enterprises, schools, military fields etc. Widely used in sport race events,warehouse,logistics,manufacturing, asset tracking, logistics and supply chain, motor vehicles, clothing, books, archives management, education, ports, steel, tobacco ,transportation industry, alcohol anti-counterfeiting, animal husbandry and meat source, and other fields .

700-500 公司图片.jpg

Q1: Are you a factory or trade company?

A: We are a leading RFID manufacturer factory.

Q2: Can i get some sample or free sample ?

A: Yes, welcome to order sample to test and check quality. And we can provide free Rfid tag test sample.

Q3: Do you have MOQ?

A: In general RFID tag have not MOQ, free rfid tag sample can be provide.

RFID reader antenna MOQ is 1pcs.

Q4: Is it possible to put our logo on your product or product packaging for OEM/ODM?

A: Customized design is available,welcome to customized products.

Q5: What payment methods does your company accept?

A: We can accept payment by Credit card, TT (bank transfer) , Western Union, Paypal,Payoneer,Trade asurance,, Escrow, Alipay.

Q6: What is your lead time?

A: Our regular product lead time is 1~7 working days,also depends on order quantity and specific requirement.

Q7: How long is your warranty period?

A: Our officially promised warranty time is 12 months.If your rfid reader have quality problem within one year ,please feel free to contact us ,we will provide best solution for you

Q8: Is there any tracking number for my order?

A: Yes ,we ship every order with their tracking number ,and you can view the shipping status on the corresponding website.

Q9: Can you provide after- sales technical support?

A: Yes,we have strong technical team can provide after -sales technical support service.

Q10: What methods will you use for shipment?

A: Fast Express: DHL,FedEx,TNT,UPS,EMS -Slow shipping way: Aliexpress standard shipping , China post mail, Epacket...... -Also can ship goods by sea or by air,real method depends on order quantity.
