integrated uhf 12dbi antenna reader 1-15m passive long range distance UHF RFID reader with tcp ip RS232/485 Wiegand interface

integrated uhf 12dbi antenna reader 1-15m passive long range distance UHF RFID reader with tcp ip RS232/485 Wiegand interface

integrated uhf antenna reader 1-15m passive long range distance UHF RFID reader with tcp ip RS232/485 Wiegand interface

Model number:CZS447

The high performance UHF RFID integrated reader are designed upon fully self-intellectual property. Based on proprietory efficient DSP algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, vehicle/people access control, production line.anti-counterfeit and industrial production process control system.

FEATURES

*Self-intellectual property;

*Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

* 865-868mhz EU,902~928MHz frequency USA frequency

*RF output power up to 30dbm(adjustable);

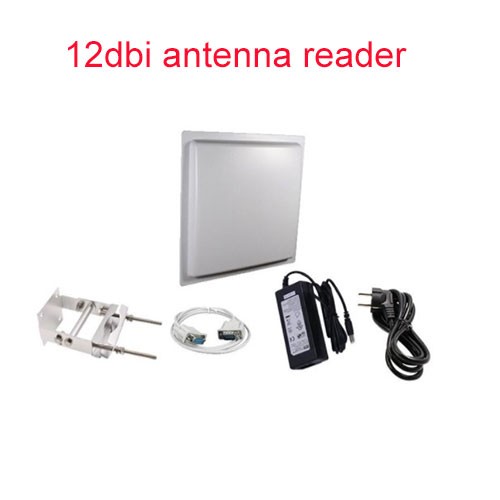

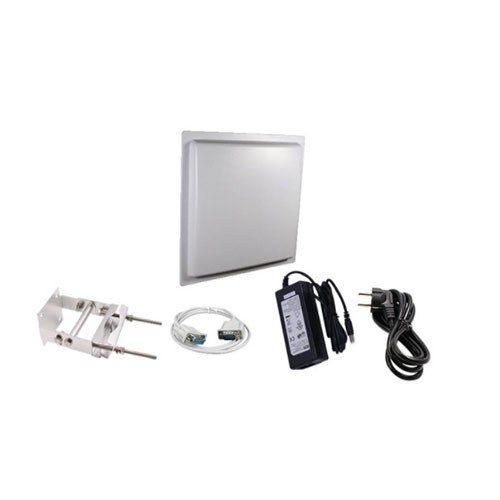

*Integrated 12dbi antenna reader

*Long range reading: 12dbi antenna uhf rfidreader 1-15m ,9dbi antenna uhf rifd reader 1-8m（Effective distance depends on antenna, tag and environment.）

*Support auto-running, interactive and trigger-activating work mode;

* Low power dissipation with single +9 DC power supply;

*Support RS232, RS485, Wiegand interface,TCP/TCP and RJ45(optional);

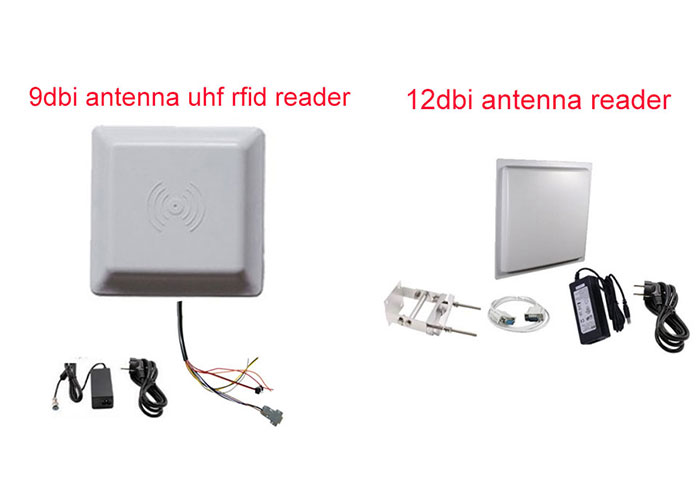

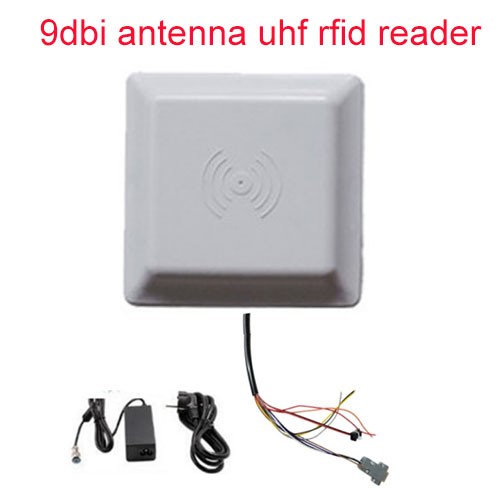

Model Number and Size	CZS447 (12dbi antennareader) , size 44744755mm CZS235 (9dbi antenna reader) , size :23523539mm
Frequency	902Mhz – 928Mhz or 865MHz – 868MHz
Reading Distance	czs447 with 1-15m ,Czs235 with 1-8m read range (depend on tags,environment,application)
Connector	RS232 /Wiegand 26 /Wiegand 34,RS485,TCP/IP RJ45(optional)
Baud rate	115200 bps(default and recommended) 38400bps
Supply Voltage	DC 9V
Air Interface Protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Output Power	0-30dBm（adjustable）
Read multi-tag	1- 50 Tag/Second
Tag cache	200 Tags@ 96 bit EPC
Standby Mode Current	<80mA (EN pin set to high)
Sleep Mode Current	<100uA (EN pin set to low)
Startup Time	<80mS
Operating Temperature	- 20 °C - + 70 °C
Storage Temperature	- 20 °C - + 85 °C
Humidity	< 95% ( + 25 °C)
Output Power Precision	+/- 1dB
Output Power Flatness	+/- 0.2dB
Receiver Sensitivity	< -70dBm
Tag RSSI	Supported
Heat Dissipation	No heat sink required

Cable Interface

Item	Comment
Red	+9V
Black	GND
Yellow	Wiegand DATA0
Blue	Wiegand DATA1
Purple	RS485 R+
Orange	RS485 R-
Brown	GND
White	RS232 RXD
Green	RS232 TXD
Grey	Trigger input（TTL level）

700-500 产品应用图.jpg

Shenzhen Czstar Technology Co., Ltd is a leading RFID manufacturer, located in Shenzhen city , China.

We are specialized in R&D, manufacturing and sales of RFID products. Provide high-performance RFID product & RFID solutions with an experienced R&D and management team in RFID industry.

Our main RFID products include 860~960MHz ,125KHz, 134.2KHz, 13.56MHz and 2.4G frequency, which conforms to ISO18000-6B/6C, ISO7816, ISO11784/5, ISO14443, ISO15693 and other international standard protocols.

The products has been successfully applied to the government, enterprises, schools, military fields etc. Widely used in sport race events,warehouse,logistics,manufacturing, asset tracking, logistics and supply chain, motor vehicles, clothing, books, archives management, education, ports, steel, tobacco ,transportation industry, alcohol anti-counterfeiting, animal husbandry and meat source, and other fields .

700-500 公司图片.jpg

Q1: Are you a factory or trade company?

A: We are a leading RFID manufacturer factory.

Q2: Can i get some sample or free sample ?

A: Yes, welcome to order sample to test and check quality. And we can provide free Rfid tag test sample.

Q3: Do you have MOQ?

A: In general RFID tag have not MOQ, free rfid tag sample can be provide.

RFID reader antenna MOQ is 1pcs.

Q4: Is it possible to put our logo on your product or product packaging for OEM/ODM?

A: Customized design is available,welcome to customized products.

Q5: What payment methods does your company accept?

A: We can accept payment by Credit card, TT (bank transfer) , Western Union, Paypal,Payoneer,Trade asurance,, Escrow, Alipay.

Q6: What is your lead time?

A: Our regular product lead time is 1~7 working days,also depends on order quantity and specific requirement.

Q7: How long is your warranty period?

A: Our officially promised warranty time is 12 months.If your rfid reader have quality problem within one year ,please feel free to contact us ,we will provide best solution for you

Q8: Is there any tracking number for my order?

A: Yes ,we ship every order with their tracking number ,and you can view the shipping status on the corresponding website.

Q9: Can you provide after- sales technical support?

A: Yes,we have strong technical team can provide after -sales technical support service.

Q10: What methods will you use for shipment?

A: Fast Express: DHL,FedEx,TNT,UPS,EMS -Slow shipping way: Aliexpress standard shipping , China post mail, Epacket...... -Also can ship goods by sea or by air,real method depends on order quantity.
